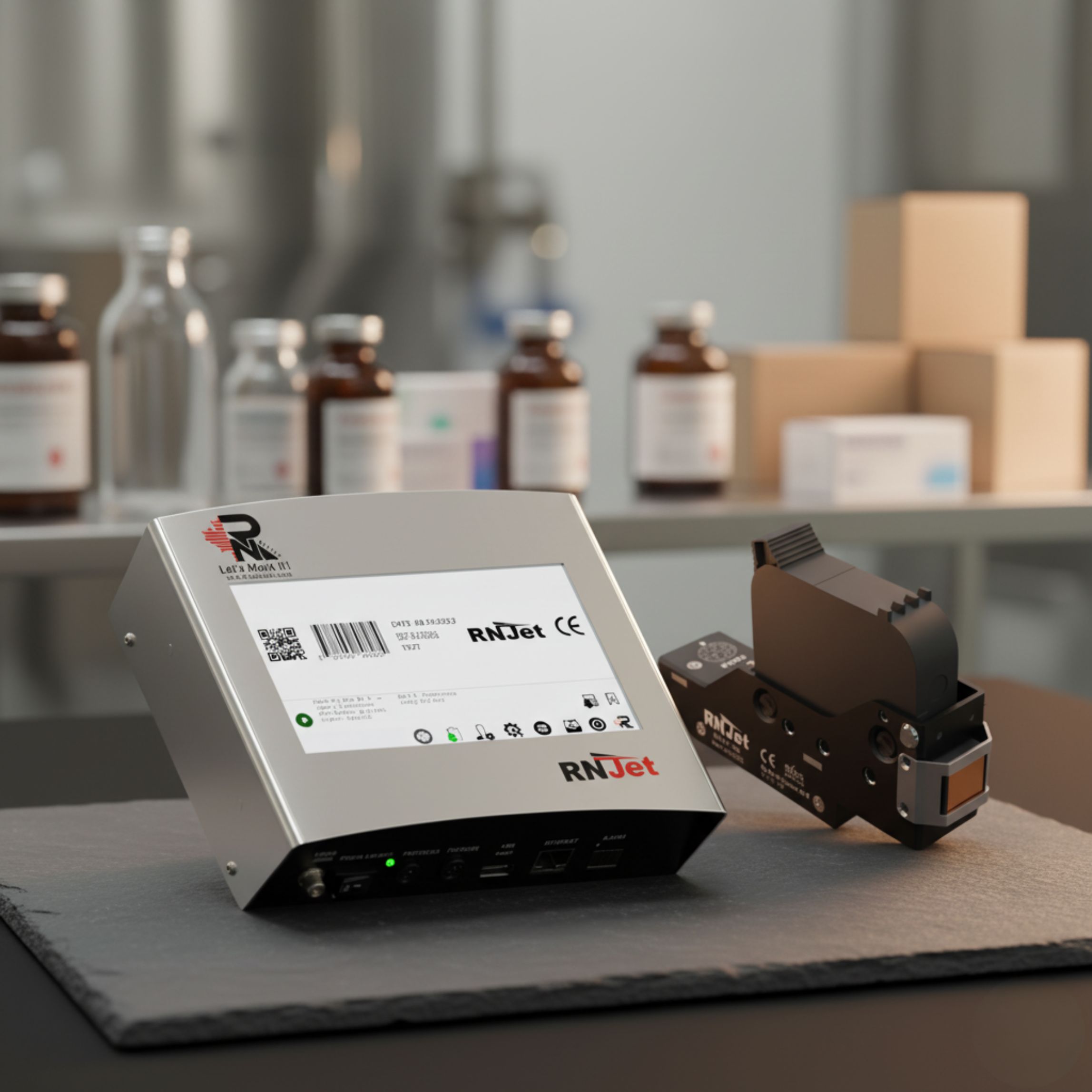

Main Features of Batch coder RNJet H1+:

• Display: 7″ Touch screen Stainless Steel Case
• Print Speed: up to 90 m/min (300dpi) or 180 m/min (150 dpi)
• Max. Print Height:12.7 mm (0.5″)
• Print Head could be installed up to 2 m from Controller
• Ink Percentage indicator on the screen
• Photocell and Brackets are included
• Super User-Friendly Software
• No-maintenance
• Throw Distance – up to 8 mm
• Could be used to print manually
• Economical Fast Dry ink for non-porous material and even more economical water-based ink – for porous material, USDA approved food-grade ink*
• Available Ink Colors: Black, White, Yellow, Red, Blue, UV Black, UV White, FDG Blue, FDG Dark Pink*

*ink is not included and should be purchased separately

Technical Characteristics of Batch Coder RNJet H1+:

• Thermal HP TIJ 2.5 print-head
• Max. Print Speed: up to 180 m/min (150 dpi) or up to  90 m/min (300 dpi)
• Max. Print Height:12.7 mm (0.5″)
• Max. Print Length: 5500 mm
• Throw Distance: Up to 8 mm
• Resolution: 300 dpi
• Ink Types: Solvent & water based
• Ink Drying Time: 1 to 3 seconds, depending on substrate
• Ink Colors: Black, Pigmented White, Pigmented Yellow, Red, Blue, FDG Blue, FDG Dark Pink, UV, UV White (ask us for more)
• Print Orientation: Side-printing, Downwards
• I/O Ports: Photocell, Shaft-Encoder, USB, Ethernet, RS 232
• Display: 7″ Touch screen Stainless Steel Case
• Power: 12V – 5.0A
• No. of Print Heads: 1
• Ink Management: Ink Percentage Indicator on the screen & Ink consumption calculator
• Operating Temperature: 0°C to 45°C, Relative humidity: 20% – 80%
• Storage Temperature: -5°C to 50°C
• Connectivity: USB, RS-232, Ethernet
